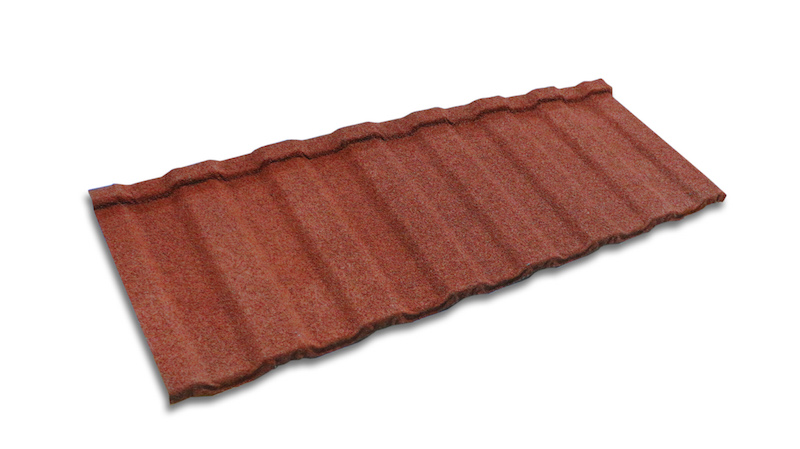

Classic french tile

Classic french tile

Ideal for residential use. Once installed, it has the appearance of a conventional ceramic tile with the advantage of being 8 times lighter per sqm.

This model is characterized by strong and straight lines being fast and easy to install. It can be fixed over a wood, metal or concrete substructure.Stampin Marek classic french tile can be installed over an existing roof eliminating the tear-off costs.

Technical description:

• Dimensions: The stone coated panel is available in panels of 1180 x 408mm . with a thickness of 0,5mm (0,1) and a diameter of 1100mm x 362 mm)
• Weight: 2.5 kg. per panel
• Application: Arquitectural panel design for residential and commercial use.
• Weather resistance: It can be installed in tropical, sub-tropical, artic and templade areas.
• Finish: A thin stone coat bonded to the top of the zincalume panel with acrylic resin and fungicide protection.
• Colors: black, blue, green, red, green alps.
• Faded colors: ocean, olive, toscano, alerce, alps.
• Fasteners: 2 inch galvanized nails. In windy areas towane screws are recommended or cla2ga.
• Coverage: 2.4 panels per sqm.
• Packaging: wood pallets (1000 x1200x80mm) containing up to 400 roof tiles.
• Storage & handling: panels should be stored before installation in a dry place free of dust. We recommend keeping the original packaging and in case of handling the material to another pallet, it should be done carefully, without pulling to avoid peeling the finish.

Minimum slope: This metal roof has a minimum slope of 14º for the installation.

Colors of the classic french tile
