Edmund color stone coated zincalume

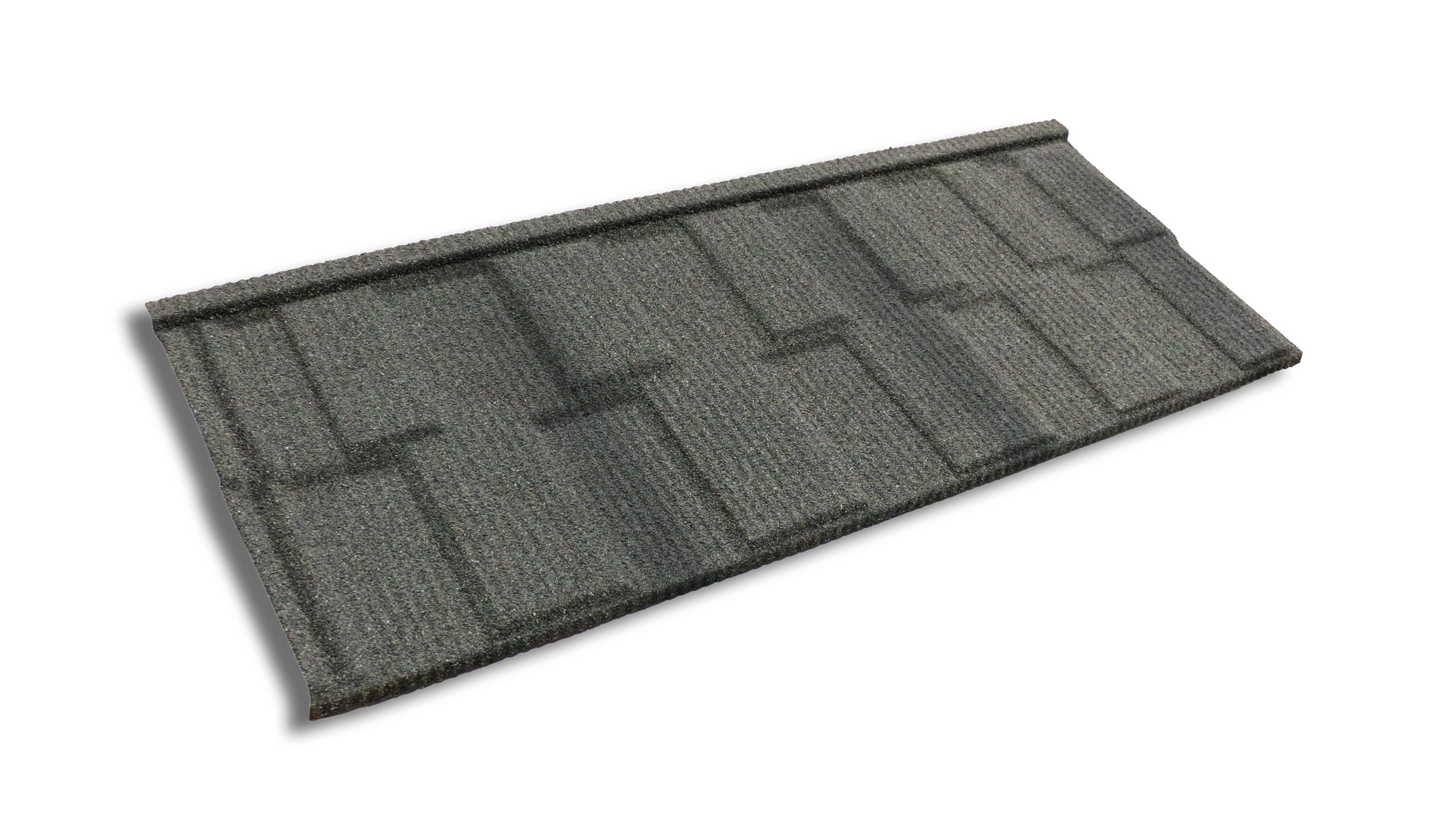

Edmund color stone coated tile

Elegant and durable, it is a type of shingle tile that is more practical and with a market design. the stone put together with steel is very resistant.

Technical description

• Dimensions: The stone coated is available in panels of 1170 x 470 mm.
• Coverage: 2.06 panels per sqm with double cap.
• Weight: 2.90 kg. per panel
• Application: Arquitectural panel designed for residential and commercial use.
• Weather resistance: It can be installed in tropical, sub-tropical, artic and templade areas.
• Finish: A thin stone coat bonded to the top of the zincalume panel with acrylic resin and fungicide protection.
• Colors: black, blue, green, gray, red, green alps.

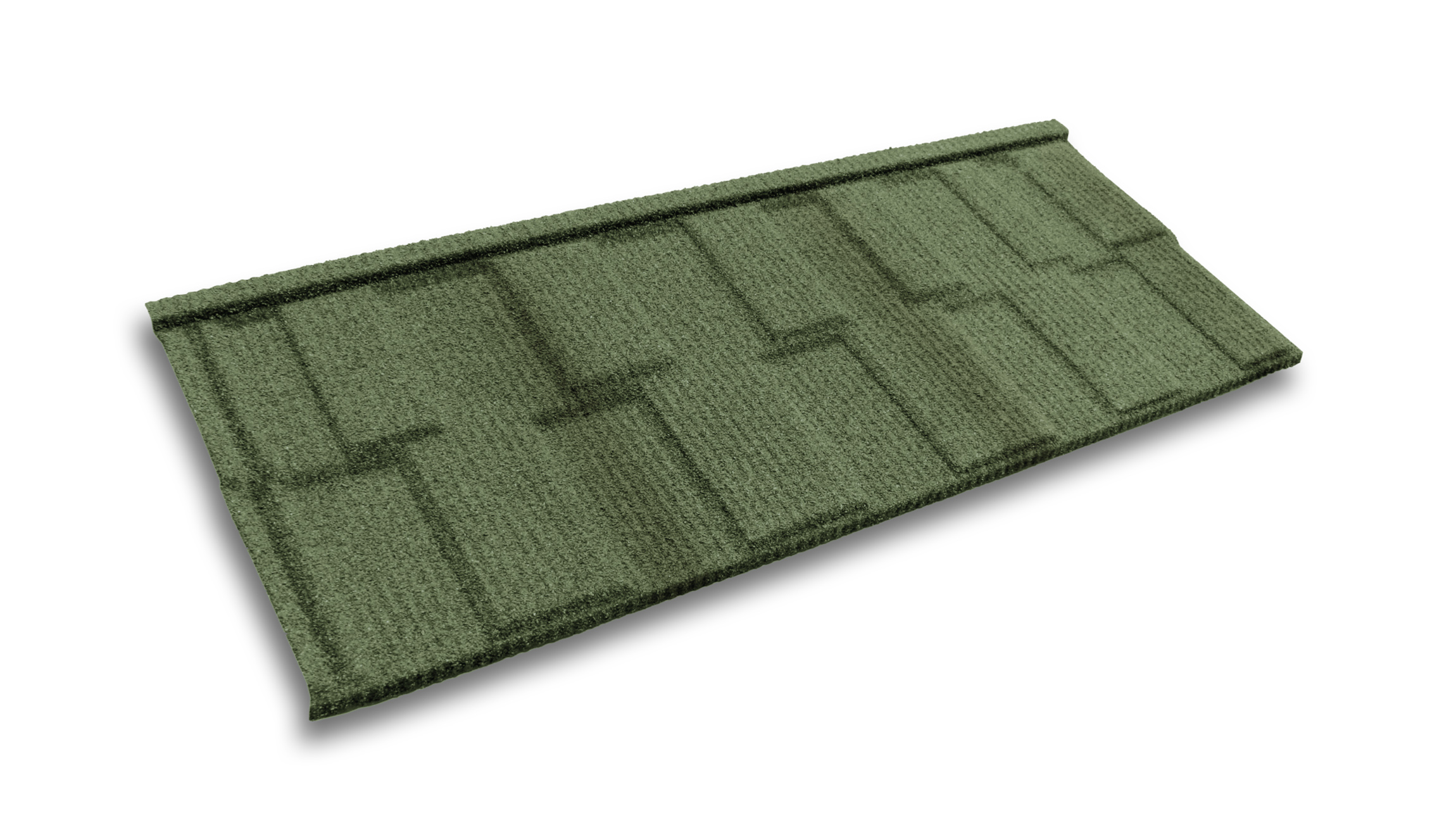

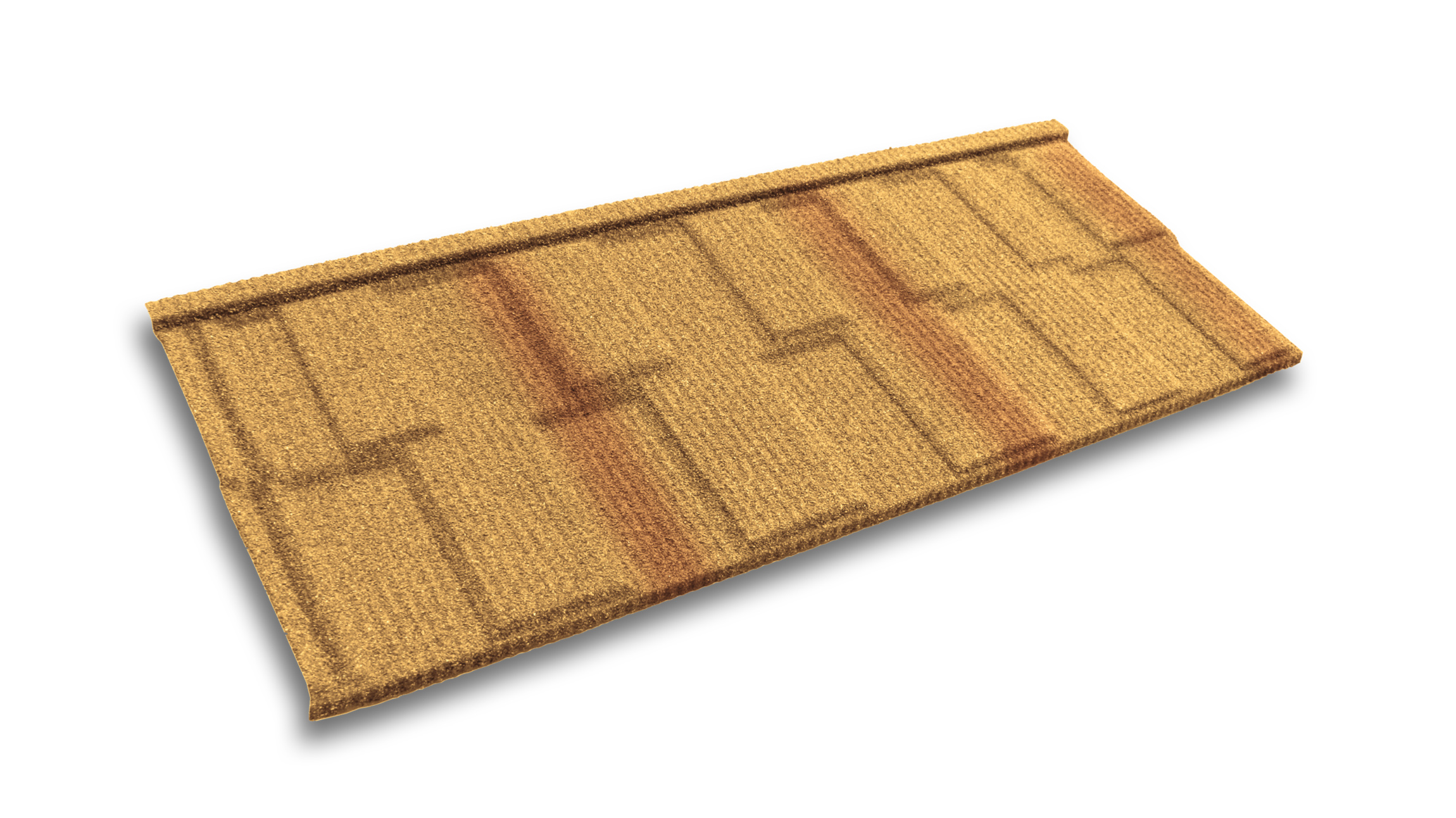

• Faded colors: olive, alerce, alpes, ocean and toscano.
• Fasteners: 2 inch galvanized nails. In windy areas towane screws are recommended or cla2ga.
• Storage & handling: Panels should be stored before installation in a dry place free of dust. We recommend keeping the original packaging and in case of handling the material to another pallet, it should be done carefully, without pulling to avoid peeling the finish.

Minimum slope: This metal roof has a minimum slope of 14º for the installation.

Edmund color stone coated tile
