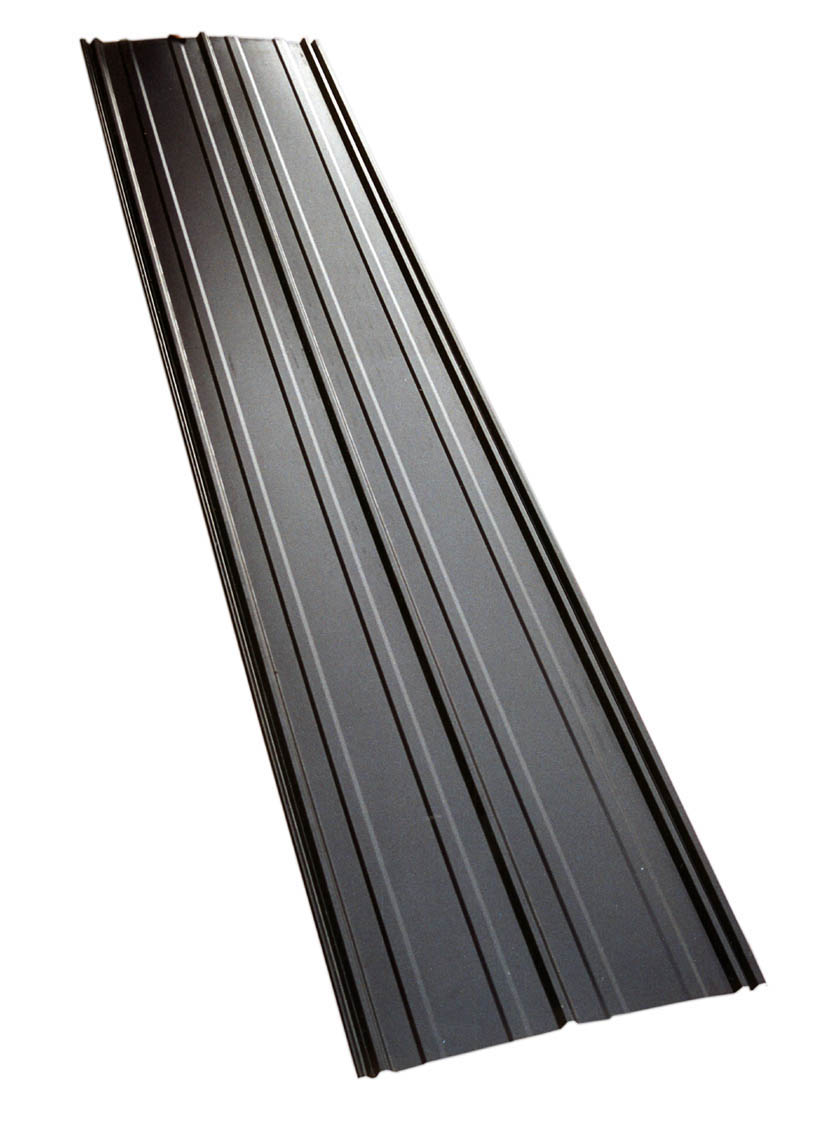

M505
Elegant lines and excellent structural resistance. The design is made for residential construction.
The fabrication system makes possible a custom length of the measurement you need. The width is 550mm. It’s easy to manipulate and it has no wastage. It has a double connection and an anti-siphon system, unique in the market which prevents leakage.
Technical description
- Dimensions: The panels are available in panels of 550mm of width and the custom made length .
- Weight: 2.2 kg. per panel
- Application: Arquitectural panel designed for residential and commercial use.
- Weather resistance: It can be installed in tropical, sub-tropical, artic and templade areas.
- Finish: Our strategic provider is Ternium of the group Techint. For the m505 color galvanized we use the Ternium color galvanized steel. A thin coat bonded to the top of the galvanized panel with acrylic resin and fungicide protection.
- Colors: black, blue, light blue, green, red, white, beige, gray, zincalume and natural.
- Fasteners: In windy areas towane
- Coverage: 1.98 meters linear per sqm.
- Packaging: pallets
Storage & handling: Panels should be stored before installation in a dry place free of dust. We recommend keeping the original packaging and in case of handling the material to another pallet, it should be done carefully, without pulling to avoid peeling the finish.

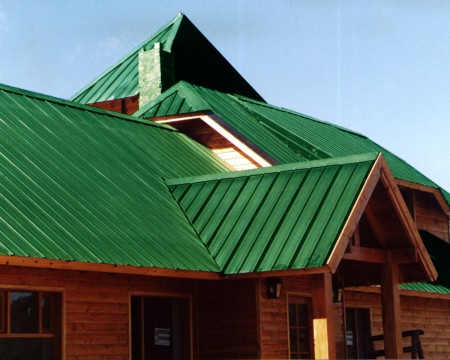

Samples of m-505
